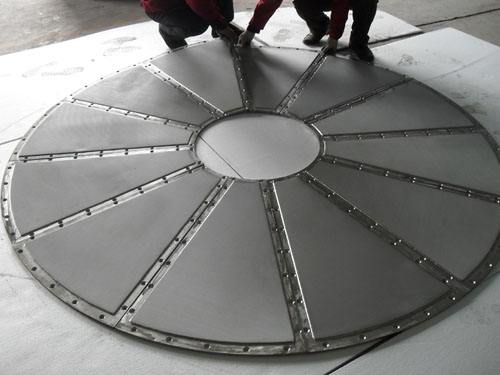

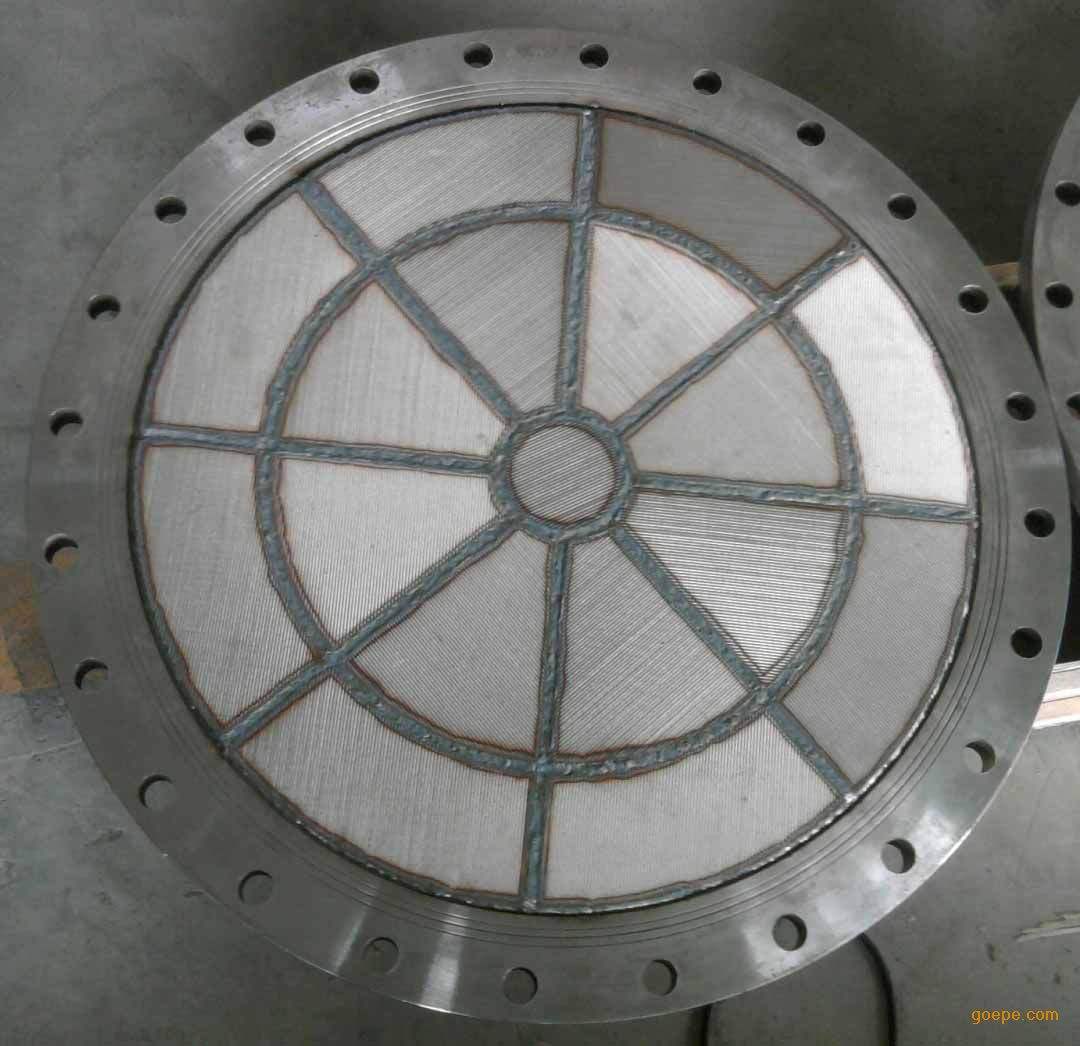

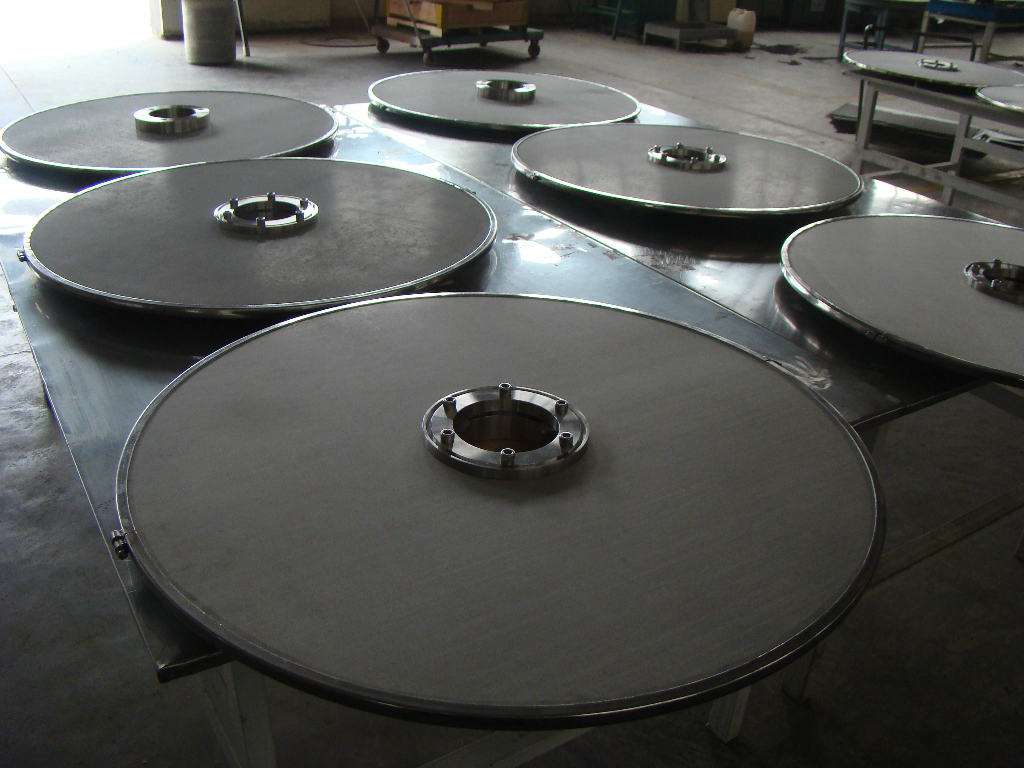

Leaf Filter Screen

The main media materials of leaf disc filter element are metal fiber sintered felt, multi-layer sintered wire cloth, metal sintered woven mesh.

Material: AISI316, AISI316L, Titanium and other alloys.

Characteristics:

1.Available Media and wide range of filtering rating

2.Excellent filtering performance, Large filtration area

3.High filtering accuracy, Good rigidity

4.Easy to clean, Recyclable.

5.Filtration direction: from inside to outside.

6.Fiber metal felt depth media are available from 3μ - 60μ absolute.

Sintered wire cloth media is available from 10μ- 200μ absolute.

Filtration direction: inside to outside

Sizes & Center Hub Designs

Standard diameters are 7", 10"and 12".

Standard hub designs are hard, soft, and semi-hard.

Application:

Polymer Filtration

Film Production

purification of Petroleum and Chemistry

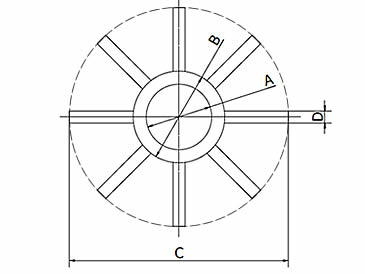

Pack Leaf Filter Screen Size Table
Model	Size (mm)
	A	B	C	D
PLF-5-5-11	50	57	111	3
PLF-5-5-14	50	57	149	3
PLF-6-6-17	60	67	177	3
PLF-7-8-17	77	84	177	3
PLF-6-6-22	60	67	222	3
PLF-7-8-22	77	84	222	3
PLF-7-8-30	77	84	304	3
